Xsmart On-Line XRF
On-line Real-time Monitoring system
Fast-Match
Uni-Elm
Multi-Flow
Easy-Pro

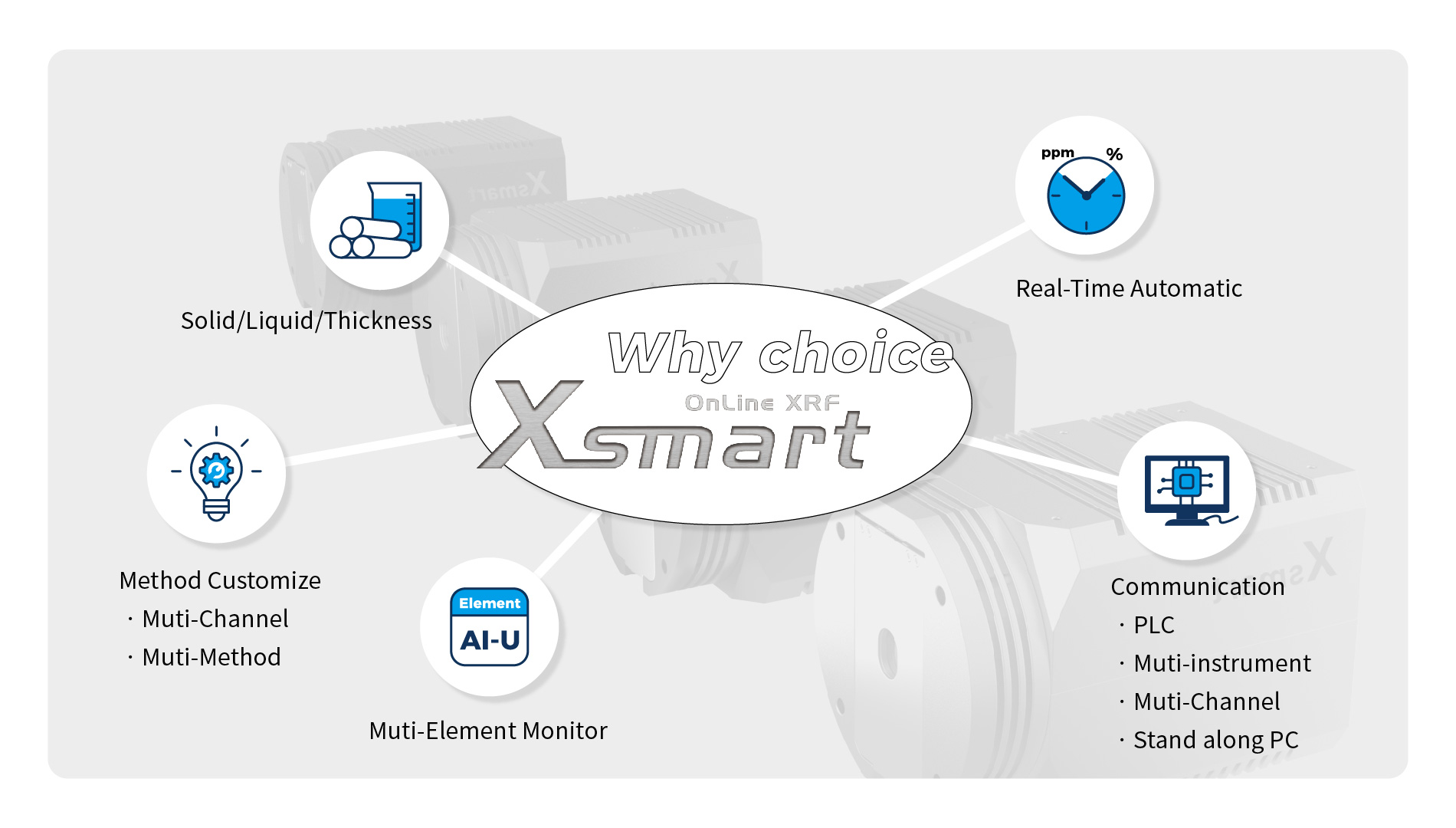

Xsmart Features
- Easy maintain
- High-performance heat sink
- Long-term stability monitoring
- Turnkey Solutions: Xsmart-1C, Xsmart-2C, Xsmart-4C, Xsmart-Muti, Xsmart-SA
Easy Operation
- Multi-Station, Multi-Calibration
- Parameter ( time, threshold)
- Result( spectrum, element, concentration) Auto save
Multi-Channel
- One system can monitor muti-channel. Every channel can have different monitor element, calibration curve and thresholds.
- A single detection probe for up to four channel.
Stability
- Auto check resolution, Intensity, Energy to make sure monitor is stability.
- Long-term monitoring and signal integration.
Industry 4.0
On-line system is 24 hr and 365 days collect result. Automatic send signal to next step for startup/ shutdown, detection condition switching, overrun alarm for detected values, emergency shutdown and other control and export of measurement data or determination result.
Description
Monitor Frequency
- XRF for quick 100% monitor
- Without any sample prapare
Muti-Calibration
- Depend on substrate, concentration Range
Threshold
- Depend on customer
- Method
Customize
- Customize UI
- Signal for CRM, ERP or other automatic system
Big Data
- Automatic storage
- Catalog
| Manufactory | Taiwan |
| Design | On-line X-ray Fluorescence XRF |
| Voltage | 4W@50kV |
| Current | 200μA |
| Range | Al (13) ~U (92) |
| Application Software |
Match Method -Alloy, Ceramic, Polymer or any secretary Material have special element FP Method FP with Standard Calibration |
| Application |
Alloy QA/QC, Alloy Pass/Fail, Alloy PMI Solution monitor Precious Element real time monitor Metal thickness coating real time monitor Plating solution monitor Etching element monitor |
| Customize |
YES Add method Add Element |
| Collimator | 3.5, 3.0, 2.5, 2.0, 1.5, mm |
| Detector |
Si-Pin (Si semiconductor detector) Or SDD (Silicon Drift Detector ) |
| Filter | std_1, std_2, std_3 |
| Calibration | Routine or setting time |
| Operation software | Windows XP |
| Extend or connection | PLC |
| Safety |
Door sensor-Any door open will shut down current for safety Leakage sensor for liquid flow cell X-ray manufactory license |
| Service | Customize method, customize service. Automatic instrument few service requirement. |
| Power | 110V 10A |
| Weight | 4.5Kg |
| Probe Head size | L240mm x W 160mm x H 160mm |
| Input Voltage | DC 12V |
| Input Current | Max. 2.5A |
| External point 1 | support DC 24V/2.5A |
| External point 2 | Output DC 5V |
| Communication | Ethernet x 2 |
APPLICATION
High concentration A threshold Low concentration B threshold and Monitor
- Monitor Long term Ni concentration
- Monitor Ni concentration stability
- Data is match with SGS report
100% sorting – 304 vs. 316
-
20 samples by 16 sec, very efficient
-
Pass/Fail
-
Customer adjust parameter, Element threshold
